Single Arm Set Scissor Lift Tables

Description

1 Flat or tear pattern deck top, The top roll over edges are square (not radius) for greater strength, smoother load transfer and flush mounting of handrail, conveyors etc.

2 A perimeter safety trip frame is fitted to the undersides of the platform to prevent further lowering should an obstruction be encountered. For added safety, operator reset is standard.

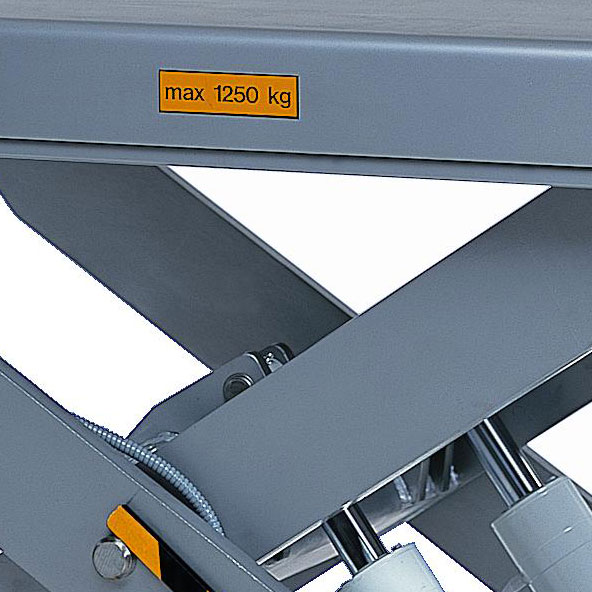

3 The scissor arms for lift tables up to 3 metres in length are usually profiled, solid steel. For larger lifts, steel hollow section is used to provide greater stability. A substantial torsion tube is fitted between the armsets to help ensure good synchronisation and stability even when eccentrically loaded.

4 Bearing Bushes

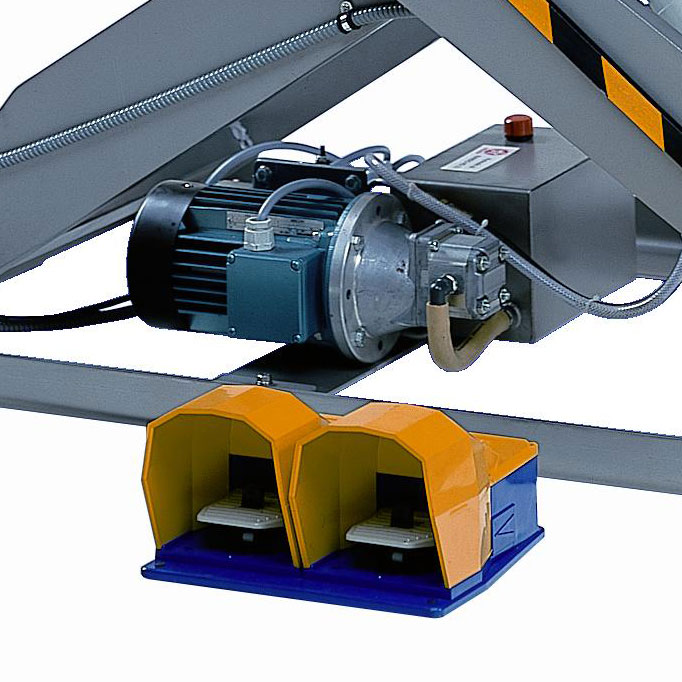

5 The 1.400 rpm power packs are selected for their exceptional reliability and low noise (<70dBA). A built in high pressure filter helps protect the lowering valve from malfunction. The lowering speed is adjustable on site and is controlled by a pressure compensating valve. Mains supply 400V, 3 phase, 50Hz; control circuits 24V, 50 Hz. except for types marked *(230V, 1 phase, 50Hz), Each lift is protected to IP54 and is ready to use when connected to a mains supply and suitably installed. The control station is on 3 metres of flexible cable complete with Emergency Stop and deadman (constant pressure) UP and DOWN push buttons.

6 Steel swivel stops or posts are provided to mechanically support the lift in a raised or semi-raised position to allow access for maintenance purposes.

7 The steel arm roller bearings are replaceable.

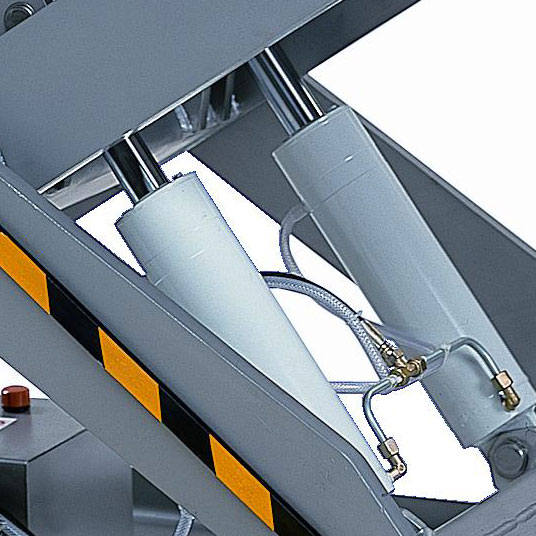

8 Cylinder Tubes
